Product description
Prevent spills when transferring flammable solvents, thinners, oils or paint wastes—self-closing lid in case of fire
Colour:
Yellow
Quickly go to
All product sizes This product comes in 2 different sizes
Filter available options
You can specify quantities and accessoires after you have added the item to your order.
swipe to the left, to see all details
Specifications and configuration
Close this overlay
Safety Drum Funnels 0820 Justrite spill containment Yellow 27.3cm x 25.4cm 152
- Article number :JDR08227YL
- Article number USA :08227
- Dimension (cm) :27.3cm x 25.4cm
- Flame Arrestor (mm) :152
- Unit of measurement :EA
- Non Stock Lead Time :84 days
- Ships from :Achterzeedijk 57, Unit 15, Barendrecht 2992SB, The Netherlands
- Shipping method :Pallet
- Dimension (cm) :27.3cm x 25.4cm
- Flame Arrestor (mm) :152
- DN (mm) :19
€0.00
Retail price €0.00
Specifications and configuration
Close this overlay
Safety Drum Funnels 0820 Justrite spill containment Yellow 27.4cm x 106.7cm 813
- Article number :JDR08206YL
- Article number USA :08206
- Dimension (cm) :27.4cm x 106.7cm
- Flame Arrestor (mm) :813
- Unit of measurement :EA
- Non Stock Lead Time :84 days
- Ships from :Achterzeedijk 57, Unit 15, Barendrecht 2992SB, The Netherlands
- Shipping method :Pallet
- Dimension (cm) :27.4cm x 106.7cm
- Flame Arrestor (mm) :813
- DN (mm) :51
€0.00
Retail price €0.00
| Art. No | Art Ref. No | Dimension (cm) | Flame Arrestor (mm) | ||
|---|---|---|---|---|---|
| JDR08227YL | 08227 | 27.3cm x 25.4cm | 152 | ||
| JDR08206YL | 08206 | 27.4cm x 106.7cm | 813 |
Overview
Product Features
- Wide-mouth, galvanized steel with durable powder-coat finish
- Built-in brass flame arrester that absorbs and dissipates heat, preventing any external ignition source from reaching the drum’s content
- Longer flame arrester provides greater liquid flow
- TUV and FM-approved. EPA and OSHA compliant
Product description

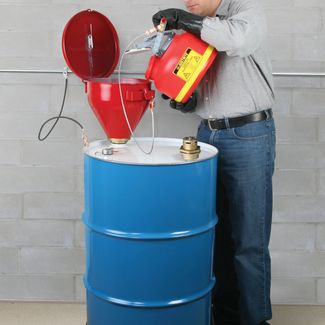

Prevent spills when transferring flammable solvents, thinners, oils or paint wastes Wide-mouth opening with hinged, stay-open lid. Built-in flame arrester prevents fire intrusion. Self-closing lid in case of fire. Galvanized steel with durable exterior epoxy powder-coat finish. Safely transfer flammable liquids into a 30- or 55-gallon (110- or 200-L) drum using this 2.6-gallon (9.8-L) capacity safety funnel that fits into a 2-in (51-mm) bung. Wide 10-3/4-in (273-mm) mouth handles rapid pouring without spills. A built-in brass flame arrester absorbs and dissipates heat preventing any external ignition source from reaching the drum’s content. Self-closing cover with a fusible link, that melts at 165°F (74°C), automatically shuts in case of a fire. Heavy-duty 18-gauge (1-mm thick) galvanized steel construction with electrostatically applied epoxy powder-coat offers excellent durability and chemical resistance. Lid in closed position reduces vapors and accepts a lock (not included) to prevent unauthorized access. FM-Approved. EPA and OSHA compliant.
Documentation & video
- justrite-0820-sicherheitstrommeltrichter-specification-de-86136
- justrite-0820-safety-drum-funnels-specification-en-86137
- justrite-0820-embudos-para-bidones-de-seguridad-specification-es-86139
- justrite-0820-entonnoirs-de-f-ts-de-s-curit-specification-fr-86140
- justrite-0820-imbuti-di-sicurezza-per-fusti-specification-it-86141
- justrite-0820-veiligheidsvattrechters-specification-nl-86142
- justrite-0820-funis-de-bid-es-de-seguran-a-specification-pt-86144
- justrite-0820--specification-zh-86145
Technical specifications
General specifications
| Closure Type | Self-close |
|---|---|
| Material | Galvanized Steel |
